MB • Single inlet fan 30 000 m³/h

Description:

Single inlet centrifugal fan

Application
MB blowers are used for applications where slightly dusty air has to be removed. The fan is suitable for handling air up to 80°C. These fans have a very good price/air volume relation. A protection hood is required for outside use.

Composition

  • The casing is made of spot welded sheet steel and painted in epoxy RAL 7031 with a total thickness of 80µ. The strong base frame support the motor
  • The impeller with forward curved blades is dynamically and statically balanced grade G6.3 according to ISO 1940/1. The many concave blades (30 or more) gives a great air volume at low speed which is benefit to a low noise level.
  • Totally closed squirrel-cage asynchronous motor
  • Protection IP55 – Insulation F
  • Supply: 230Vac 1ph 50Hz (Steinmetz type) - 230/400Vac 3ph 50Hz and 400/690Vac from 5.5kW motors

Curves



­

Notes

Pt = Total pressure
Ps = Statical pressure
Pv = Absorbed power
P[W]/P[kW] = Motor power
Qv = Air flow rate
T = 15°C
P = 1 atm

­

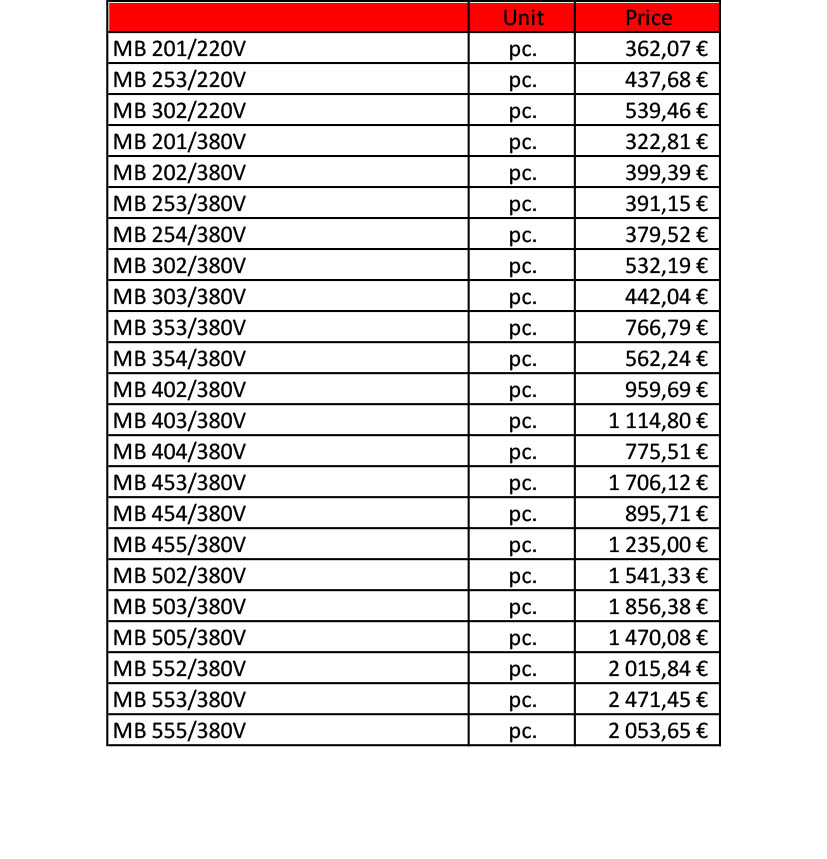

Prices:
