The fans of the DA series are suitable for ventilation, conditioning, heating. They can treat clean air with maximum temperature of 40°C.

Composition:
­

­	­­­­ A ­ ­­ [mm]	­­­ B ­ ­ [mm]	­ C­ [mm] ­	­­­ D ­ ­ [mm]	­­­ E ­­ ­ [mm]	­­­ F­ ­ ­ [mm]	­­­ G ­ ­ [mm]	­­­ H ­ ­ [mm]	­­­ I ­ ­ ­ [mm]	­­­ J ­­ [mm] ­
DA 7/7 CM 147W 4p 3v	257	307	321	232	25	146	222	180	145	29
DA 9/9 CM 373W 4p 3v	346	380	392	300	46	184	260	221	180	37
DA 9/9 CM 550W 4p 3v	346	380	392	300	46	184	260	221	180	37
DA 10/10 CM/AL 550W 4p	359	421	444	333	26	200	287	248	213	34
DA 10/10 CM 550W 4p 3v	359	421	444	333	26	200	287	248	213	24
DA 10/10 4PTC 1500W 4p 1v	386.5	424.5	445.5	333	53.5	200	289.5	249	211	36
DA 12/9 CM 100W 6p Trif	403	493	524	311	92	229	341	293	210	40
DA 12/12 CM/AL 1100W 6p Trif	466	493	524	396	70	229	341	293	240	40

­

­	Voltage [V/50Hz]	Power [W]	Current [A]	Operating temperature [°C]
				min	max
DA 7/7 CM 147W 4p 3v	230	147	2.3	-20	60
DA 9/9 CM 373W 4p 3v	230	373	4	-20	40
DA 9/9 CM 550W 4p 3v	230	550	5.1	-20	40
DA 10/10 CM/AL 550W 4p	230	550	4.6	-20	40
DA 10/10 CM 550W 4p 3v	230	550	5.5	-20	40
DA 10/10 CM 1500W 4p 1v	3 x 230/400	1500	10.1/5.8	-20	40
DA 12/9 CM/AL 1100W 6p T	400	1100	3.6	-20	40
DA 12/12 CM/AL 1100W 6p T	400	1100	4.6	-20	40
DA 12/12 CM/AL 1100W 6p T	400	2200	7.2	-20	40

Curves

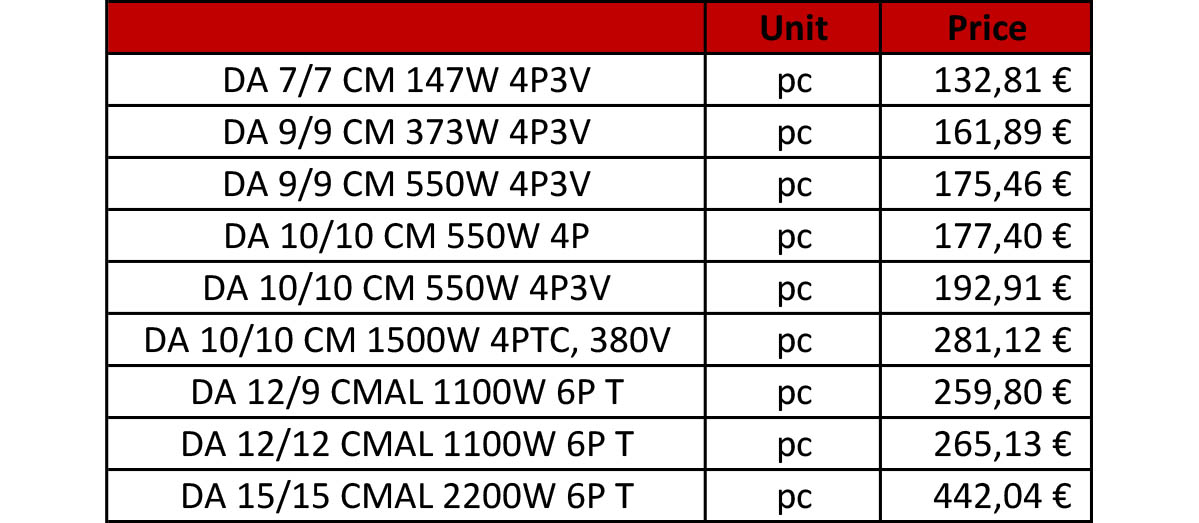

Prices:
