DA-S • Rotary fans double suction 880 m³/h
Description:
Doubble inlet centrifugal fan
Application
The fans of the DA-S series are suitable for ventilation, conditioning, heating. They can treat clean air with maximum temperature of 40°C
Application
The fans of the DA-S series are suitable for ventilation, conditioning, heating. They can treat clean air with maximum temperature of 40°C
Composition:
- Casingin galvanized sheet steel protected against corrosion by a black polyester paint coating
- Direct drive double inlet forward curved impeller, dynamically balanced according to ISO 1940 standard
- Motor with thermal protection – Insulation class B – Protection IP44
- Supply: 230V /1ph
| Model, double inlet | Power consumption [W] | Engine speed [rpm] | Capacitor [µF/V] | Current 230/1/150 [A] | Air debit [m3/h] | Noise level 1.5 м [dB(A)] | Operating temperature [°C] | Weight [kg] | Dimensions | ||||
| | | | | | | | | | A [mm] | C [mm] | D [mm] | E [mm] | F [mm] |
| DA-S/2-146/180-220W | 220 | 2400 | 5/400 | 1.01 | 880 | 63 | -15/+35 | 4.1 | 224 | 183 | 178 | 90 | 70 |
Notes:
Q = Air volume
Pe = Static pressure
Dry air at 20oC and 760mmHg

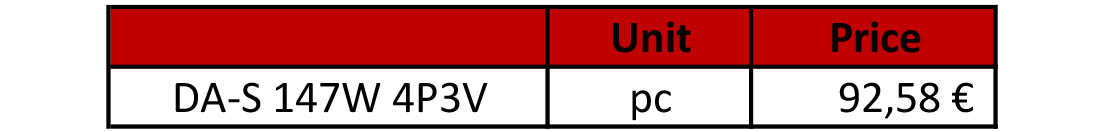

Prices:
