VCR • Rectangular duct fan
Description:
The VCR / VCR-T range of centrifugal low pressure fans are specifically designed to be installed within rectangular ducted ventilation systems or where the space for installation is limited
Application
They are suitable for application in:
- Commercial offices
- Car park supply air
- Restaurants
- Installations with limited or confined mounting space
Composition
Fan - The fan casings are manufactured from heavy gauge galvanised sheet steel. All models incorporate an inspection cover that can be removed to access the motor / impeller assembly without having to remove the complete fan casing from the ducting
Impeller - All models incorporate direct-drive low pressure forward curved centrifugal impellers. The impeller is factory matched to the motor and the complete assembly is dynamically balanced to ISO 1940 standards
Motor
- Manufactured in accordance with IEC 34-1 standard
- Single Phase 230V 50Hz
- Three Phase 230/400V 50Hz
- IP55 protection
- Class F insulation
- Thermal Overload Protection
Curves

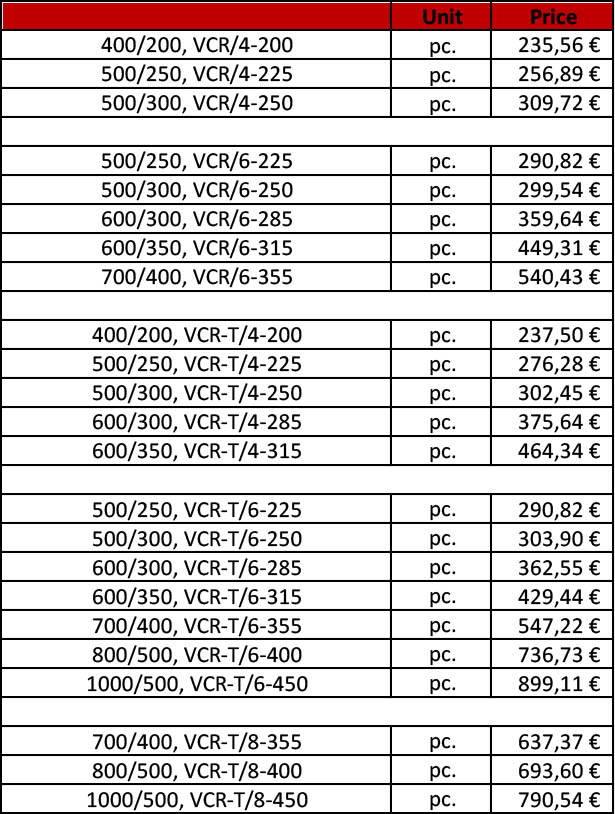

Prices:
