FHBQ • Heat recovery unit 350 - 3000 m3/h
Description:
- Energy recovery ventilation system
- Airflow rate: 350 - 3000 m3/h
Application
- A ventilation system that could recover the total heat of indoor air to save energy and it is widely used in residential or
commercial building
Features
- 7 models in a range of 350~3000 m3/h fit for diferent spaces and reduce the waste of power
- Filter and heat exchange core can be easily take out from the access for cleaning
- Internal air filter keeps the fresh air introduced into room pure and dustless
- With antibacterial and anti-mildew materials, the heat exchange core is suiting for healthy
- Unique by-pass mode can reduce power consumption of fan motor to prolong lifetime of heat exchanger core
Notes
1. The models of 220V power supply type has 3 types of fan speed and the models of 380V have one fan speed.
2. The temperature exchange efficiency and enthalpy exchange efficiency are tested under these testing conditions as below:
(1) Cooling efficiency: Indoor air 27°C DB, 20°C WB, outdoor temperature 35°C DB, 29°C WB(2) Heating efficiency: 20°C DB, 14°C WB, outdoor air temperature: 5°C DB, 2°C WB
3. Sound power level according to ISO 5151-sound pressure calculated at 1m distance.
4. Operation condition: ambient temperature - 15°C / -50°C，relevate humidity less than 80％ RH.
Wired controller
1. Timer display
2. Energy-saving status display
3. Setting humidity display
4. Ambient humidity display
5. Air exchange mode (half-half air exchange, discharge and supply)
6. Fan speed display (high, mid, low)
7. Mode(auto, by-pass, heat exchange)
8. Error status display
9. Cleaning status of filter display
10. Mode button
11. Setting humidity increase button
12. Setting humidity decrease button
13. Fan speed button
14. Reset/switch button
15. Timer button
16. On/Off button
Curves

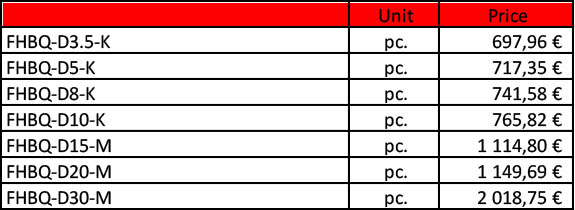

Price:
